產(chǎn)品名稱：

ARX605
ARX605
ARX605
ARX605

產(chǎn)品簡介：

型號：ARX605

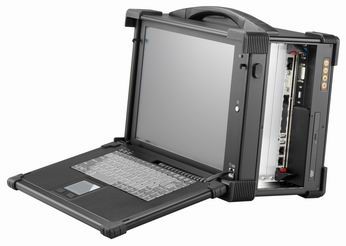

6U5插槽cPCI便攜式工控機箱，支持后IO空間，可選觸摸屏的15英寸LCD顯示屏，分辨率1024x 768，多語言鍵盤和觸摸板，1U 400W電源，超薄DVD-ROM、可選航空箱或軟包。

  • Features
  • Specifications
  • Environmental Factors
  • Ordering Information

  • Aluminum Construction with shock absorbing rubber corners

  • Built-in 15” LCD display with touch screen, 1024x 768

  • Designed for portable instrument applications

  • 6U CompactPCI and PICMG 2.5 H. 110 CT Bus

  • PICMG 2.1 Hot Swap compliant 32-bit or 64-bit 5-slot CompactPCI backplane with P3 & P5 rear IO

  • 1U, 400W power supply, 100~240VAC

  • Built-in 1x slim DVD-ROM device

  • Industrial multi-language Keyboard with touchpad

  • The keyboard is integrated with the portable computer to protect the screen and easy to carry

  • Large handle provide convenience transportation of the portable computer with comfort and ease

  • Trolley case to manage portable PC with ease


Model NoARX606
Backplane

5-slot 64-bit/ 66MHz 6U cPCI CT bus backplane

PICMG 2.5 H. 110CT bus

cPCI standards

PICMG 2.0 R3.0 CompactPCI Core Specification

PICMG 2.1 R2.0 CompactPCI Hot Swap Specification

PICMG 2.5 R1.0 CompactPCI computer Telephony Specification

Form Factor

6U CompactPCI

Accessible Slots

1 system slot & 4 Peripheral slots

Rear I/O

P3 & P5 rear I/O

Display

15' TFT LCD Monitor with touch screen, 1024x 768

KB/MS

Laptop type, multi-languages Keyboard/ touchpad

Keyboard layout:?CH, FR, GR, KR, RU, SP, UK, US

Power Supply1U, 400W, 100~240VAC, Auto switch
Drive baySlim DVD-ROM
ConstructionAluminum Construction with shock absorbing rubber corners
Dimension422Wx 285Hx 227D mm
Weight12 kgs
Trolley CasePadded trolley case with wheels


OperatingNon-Operating
Temperature0°C~45°C-20°C~80°C
Relative Humidity20%~90%10%~95%



Product No.Description
ARX605

15' LCD with touch screen, 5-slot 6U CompactPCI Portable Computer, slim DVD-ROM, trolley?case
